Centrifugal Pump PROLAC HCP

Get Quotation   Share

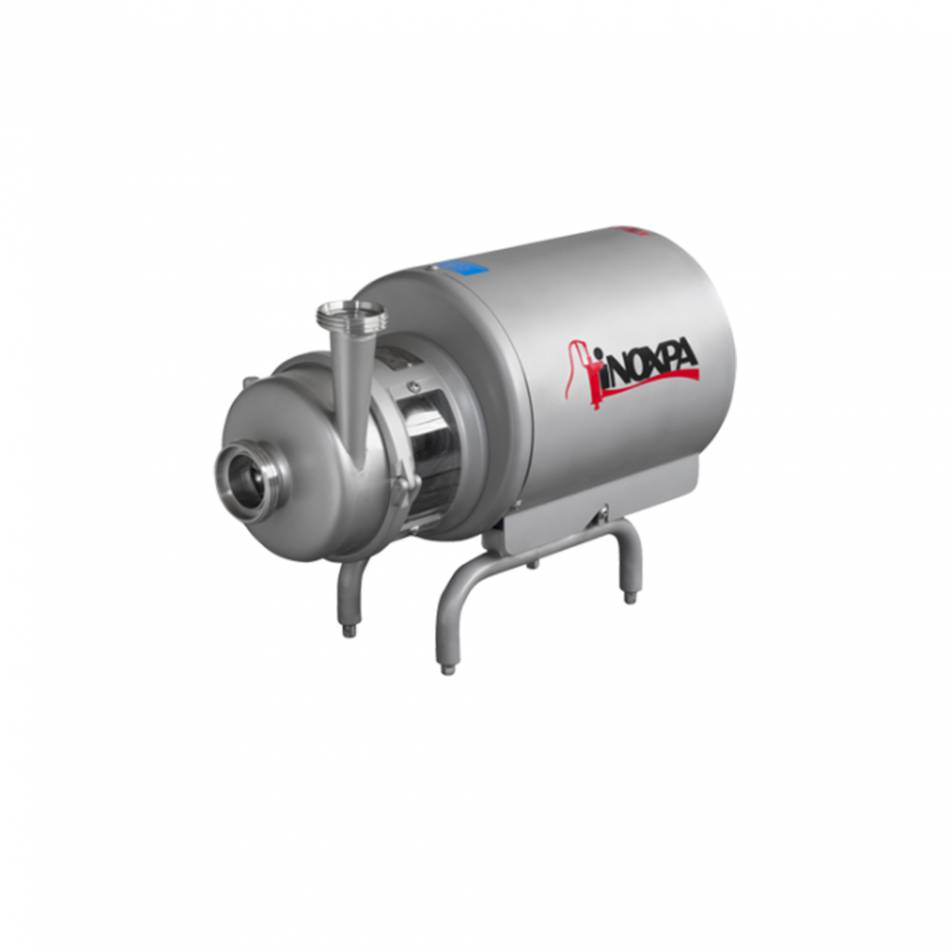

Centrifugal Pump PROLAC HCP
Name : Centrifugal Pump PROLAC HCP
Series : -
Price : Contact us
Description : Centrifugal Pump PROLAC HCP

Tags :

Centrifugal Pump PROLAC HCP Inoxpa SLR pump EFI pump Prolac pump Kyber pump Butterfly Valve Seat Valve Mixproof valve Rotary lobe pump Centrifugal pump Mixers Powder Mixer Twin Screw pump Tube & Fittings CIP return pump Stop Valve Change Over Valve Hyginox pump SE pump EFI-2222
PRODUCT AND SERVICE DETAILS

Application
       Due to the choice of materials and its design, centrifugal pump PROLAC HCP is appropriate for applications requiring a high level of hygiene, gentle handling of the product and resistance to chemical agents. This centrifugal pump is particularly suitable as main process pump in the dairy, beverage, pharmaceutical and cosmetic industries.

Operating principle
       PROLAC HCP is a range of close-coupled centrifugal pumps with hygienic design, compact and highly efficient. It is made of a cold-formed stainless steel casing, impeller, mechanical seal, pump cover, lantern and shaft, connected to the motor shaft by mechanical compression. The motor complies with the IEC standards, it is protected with a stainless steel shroud and provided with the height adjustable hygienic designed legs. The centrifugal pump is EHEDG certified,it is especially designed for CIP/SIP without disassembly.

Certificates

Design and features
       The PROLAC HCP centrifugal pump is provided with a internal single mechanical seal. The seal is balanced and has a hygienic design. As standard, the stationary part is in carbon and the rotary part is in silicon carbide, the gaskets are in EPDM. However, when required, both parts of the mechanical seal can be in silicon carbide as well as the gaskets can be in FPM. There is also an option of assembly of a double mechanical seal made of two identical seals. It helps to upgrade a pump with single seal and simplifies its maintenance.

Options
   • Pump casing with drain port.
   • Pump casing with heating chamber.
   • Different types of connections.
   • SiC/SiC mechanical seal.
   • Double mechanical seal.
   • FPM gaskets.
   • Motor with other voltages, frequencies and protection classes.
   • Motor for explosive atmospheres or with enhanced safety level.



See more >>> www.inoxpa.com

Materials
   • Materials:
   • Parts in contact with the product: ISI 316L (1.4404)
   • Other steel parts: AISI 304 (1.4301)
   • Gaskets in contact with the product: EPDM

Mechanical seal:
   • Rotary part: Silicon carbide (SiC)
   • Stationary part: Carbon (C)
   • Gaskets: EPDM

Surface finish:
   • External: Matt
   • Internal: Bright polish Ra<0,8μm

Connections:
   • DIN 11851 (standard)
   • Aseptic flange DIN 11864
   • CLAMP
   • SMS
   • (other connections available on request)
